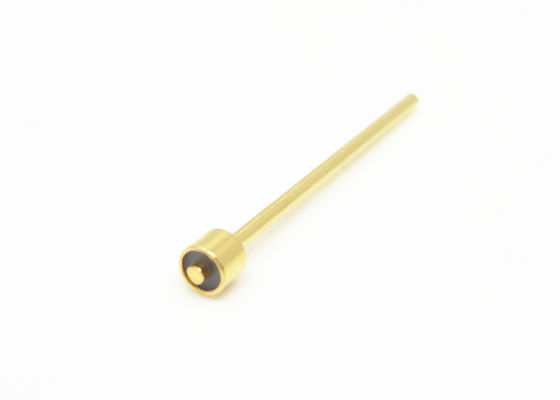

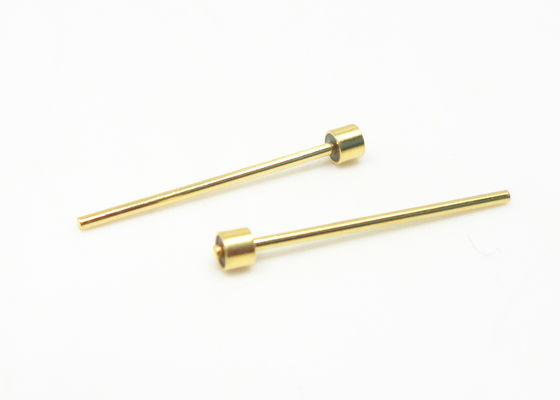

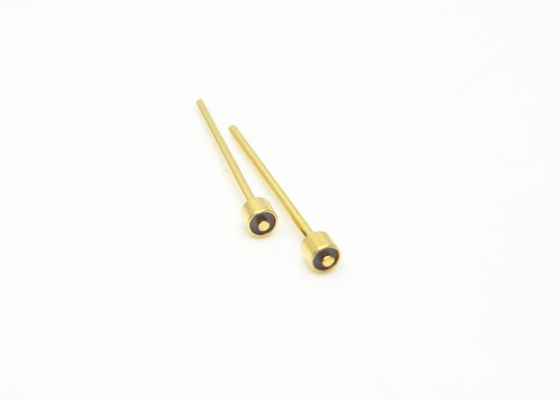

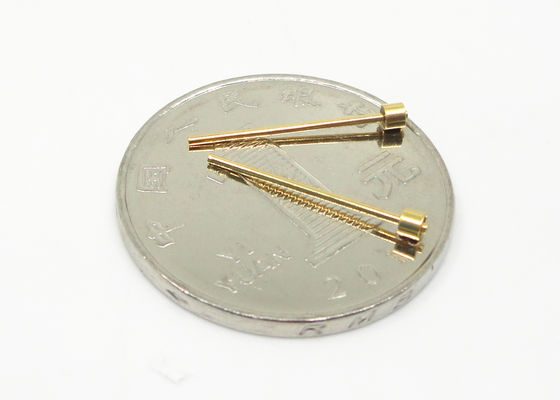

Connettori con testa a chiodo e perno lungo con tenuta in vetro-metallo per sensori DC Feedthroughs JK2016-0.7
|
Dettagli:
Termini di pagamento e spedizione:
|
Descrizione di prodotto dettagliata
| Nome di prodotto: | Vetro alle guarnizioni del metallo | Impedenza: | CC |
|---|---|---|---|
| Placcatura: | Oro placcato | Pin: | Singolo |
| vetro: | 7052,7070, DM308 | Materiale di Pin: | Kovar 4J29 |
| Shell Material: | Kovar 4J29 | Altro: | Testa di Naile |
| Hermecity: | <1> | Su misura: | Accettato |
| Evidenziare: | Connettori con testa a chiodo in vetro-metallo,DC Feedthroughs per sensori,Connettori con tenuta a perno lungo |
||
Gold Plated Nail Head Long Pin Glass to Metal Seals DC Feedthroughs for Sensor
Glass Beads/ Hermetic Glass to Metal Seals RF/DC Feedthroughs is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.
The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years. Catalog-Glass-to-Metal Hermetic Seals.pdf
Specification:
| Product Name | Hermetic Glass to Metal Seals |
| Model No. | JK2016-0.7 |
| Impedance | DC |
| Type | 1 pin |
| Rows | 1 row |
| Color | Gold plated |
| Housing and pin material | Kovar 4J29 |
|
Glass material
Glass Color
|
7052 or 7070 type or DM308
Green or White
|
| Frequency Range | NA |
| VSWR | NA |
| Withstand Voltage | ≥300V |
|
Hermeticity Leak Rate |
< 1.01325 X 10-3 Pa*cm3/s < 1X 10-9 mbar*l/s < 1 x 10-9 ccHe/sec @ 1 atm |
| Insulation Resistance | ≥2000MΩ |
| Operating temperature | -65℃~+260℃ |
Product :
Features:
- Small size
- Hermetic
- lightweight
- Stable quality and high reliability
- Inner conductor: Gold wire bonding, soldering and mating method for choice
Advantages:
- Military Grade with 1.27um gold plated
- Strict tolerance control
- Standard and custom design for choice.
- High cost-effective products and services
- Large stocks for standard sizes
- Fast delivery for custom products
Application:
Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.
Related products:
Company Profile:
Xi'an Elite Electronic Industrial Co., Ltd.
Founded in August 2003, Elite Electronic Industrial is a reliable manufacturer and exporter of RF electrical connectors, RF adapters, cable assemblies, wave-guide and multi-channel microwave rotary joints, etc. These RF electrical interconnects are widely used in aerospace, aviation, navigation, communications, antennas and other important electrical systems.
We are components supplier of China Spacecraft Shenzhou nine and many other national high tech projects. We have more than 17 years ODM experience on military and commercial Interconnect Components.
Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J, Micro D-sub, MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products
Samples are available. Please contact us for more details.
Welcome new and old customers from all over the world to contact us for future business relationships and mutual success!
