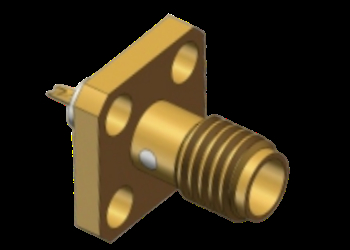

Straight SSMA Female RF Coaxi Connector 4 Hole Flange Mount Microstrip with Solder Cup
|
|
Dettagli:
Termini di pagamento e spedizione:
|
Descrizione di prodotto dettagliata
| Nome prodotto: | Connettore Microstrip Femmina SSMA | Modello: | SSMA-KFD14 |
|---|---|---|---|
| Gamma di frequenza: | 0.3MHz-18GHz | Impedenza: | 50Ω |
| Tensione nominale: | 250 V | DWV: | 750 V |
| Resistenza all'isolamento: | ≥ 5000MΩ | Conduttore centrale: | Leghe di rame placcate d'oro |
| Conduttore esterno: | Leghe di rame placcate d'oro | Metodo del supporto: | 4 Montaggio della flangia a buco |
| Isolanti: | Ptfe | Nota: | Microstrip con coppa di saldatura |
| Campioni: | In magazzino, disponibile | ||
| Evidenziare: | Microstrip RF Coaxi Connector,Solder Cup RF Coaxi Connector |
||
4 Hole Flange Mount SSMA / Mini SMA RF Coax Connector Microstrip with Solder Cup Up to 18GHz with Insulation Convex Surface
Product Specifications
| Items | Value |
|---|---|
| Product Name | SSMA Female Microstrip Connector |
| Model | SSMA-KFD14 |
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 4 Hole Flange Mount |
| Insulators | PTFE |
| Samples | In Stock, Available |
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded connection (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions
SSMA 4 Hole Flange Mount RF Coaxi Connector Microstrip with Solder Cup Dimensions
Outline dimensions for the SSMA-KFD14 model (Unit: mm).
Other Model with Solder Cup
SSMA 4 Hole Flange Mount RF Coaxial Connector Microstrip with Solder Cup Dimensions
SSMA 2 Hole Flange Mount RF Coaxial Connector Microstrip with Solder Cup Dimensions
Note: The Microstrip with solder cup.
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each SSMA flange mount connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
