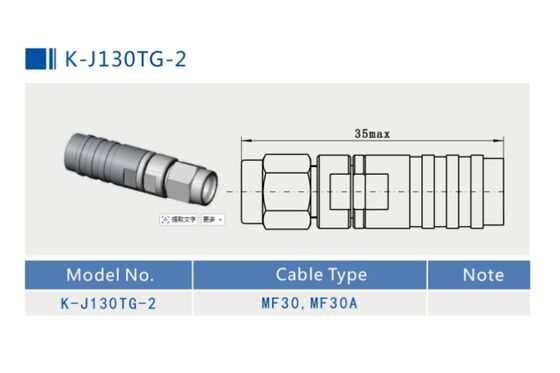

K2.92 Male Stainless Steel RF Cable Connector With Spring-loaded Armor

K2.92 Male Stainless Steel RF Cable Connector with Spring-loaded Armor


Xi'an Elite Electronics' precision 2.92mm connectors feature a 50Ω impedance and an outer diameter of 2.92mm. These connectors are suitable for test and measurement applications up to 40GHz, ensuring high levels of reliability and repeatability. The 2.92mm connectors are compatible with most 2.92mm, 3.5mm, SMA, and K connectors.
The male pin of the 2.92mm connector is shorter than that of an SMA or 3.5mm connector, which ensures that the outer contacts of the male and female connectors engage before the pin and socket do. This design prevents excessive wear and mating stress on the pin and socket, which can occur due to misalignment in SMA or 3.5mm connectors. Additionally, the 2.92mm connector has a thicker wall than a standard SMA connector. The 2.92mm series can mate with SMA and 3.5mm connectors.

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Features:
Wide Compatibility: Type K stainless steel cable connectors are compatible not only with 2.92mm sizes but also with other common sizes such as 3.5mm and SMA. This flexibility allows designers to choose the appropriate connector type based on system requirements without worrying about matching issues. This interoperability also greatly facilitates system upgrades and maintenance.
Application:
Industrial Equipment: K-type stainless steel cable connectors are also widely used in industrial equipment under harsh conditions, such as marine exploration equipment and devices used in high-temperature or high-pressure environments. The stainless steel material provides these connectors with superb mechanical strength and corrosion resistance, ensuring stability and reliability in extreme working conditions.
Electronic Products: The demand for miniaturized, high-performance connectors is growing in modern household appliances and entertainment electronics. K-type stainless steel cable connectors are used in high-end audio systems, smart home devices, and virtual reality headsets. These products have strict requirements for the size and performance of connectors, which K-type connectors can meet.
