SMK Series Satcom Passivated 2.92mm RF Connector
|
Dettagli:
Termini di pagamento e spedizione:
|
Descrizione di prodotto dettagliata
| tipo: | 2.92mm, tipo K, SMK. | Parole chiave: | 2 fori flangiano connettori del pannello |
|---|---|---|---|
| Articolo: | Connettori a onde millimetriche | Placcatura: | Oro placcato |
| Applicazione: | RF/Satcom | Isolante: | PTFE |
| Impedenza: | 50Ohm | Genere: | Femmina |
| Evidenziare: | SMK Series 2.92mm RF Connector,Passivated 2.92mm RF Connector,Satcom 2.92mm RF Connector |
||
RF Coaxial Connector SMK Series Female Straight 2 hole flange 2.92mm
K type is also called 2.92 type connector, this series of products is a commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface.With small size, light weight, high frequency of use, reliable connection, etc.
Features:
-
It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
-
Superior electrical performance up to 40 GHz
-
It has the advantages of small volume, light weight, high use frequency, reliable connect.
-
Great for applications that require high frequency transmission
-
Female contacts have unique three-slot construction
-
An air dielectric with a loss-loss plastic center conductor support.
-
It has the high use frequency, reliable connect.

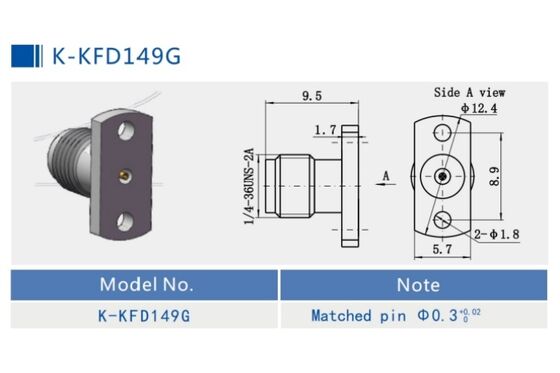

| Model Number | L | L1 | Description |
| K-KFD23 | 10.5 max | 0.7 | 2.92mm K female 2 holes flange rf connector |
| K-KFD24 | 10.2 max | 0.4 |
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio VSWR |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector
|
Part Number
|
Description
|
|
K-KFD21
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD87G
|
Stainless steel 2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD42
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-JFD61G |
Stainless steel 2.92mm Type K Male RF Coaxial Connector
|
1.
2.
3.
4.
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
